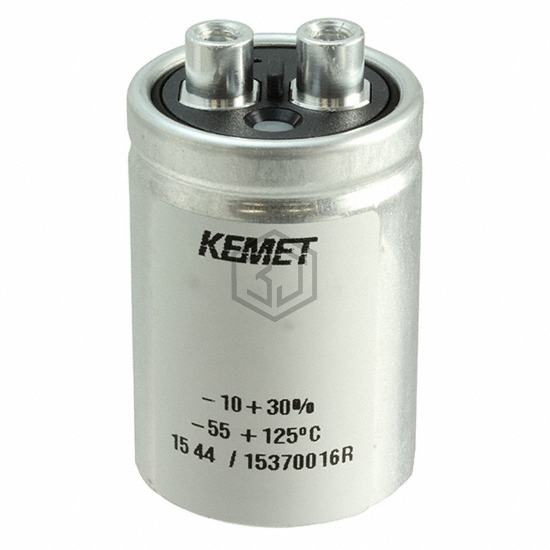

CAP ALUM 10000UF 25V SCREW
PEH205HA5100QU0 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 10000UF 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 81
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 27mOhm @ 100Hz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.3 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 17 mOhms |
| Lead Spacing | 0.512" (13.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
