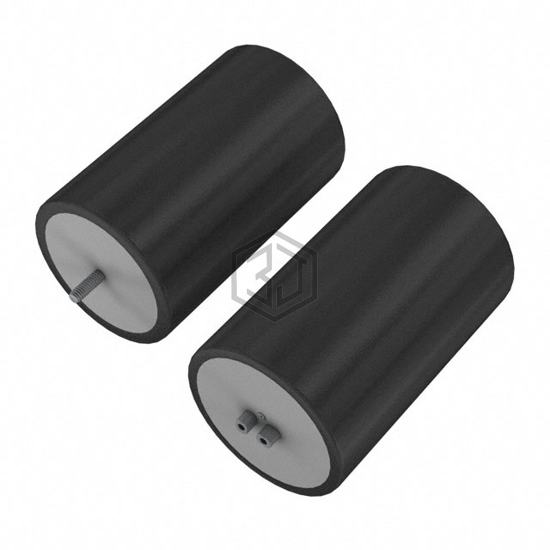

CAP ALUM 4700UF 20% 450V SCREW
PEH200YY4470MB2 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 4700UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,852
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 16mOhm @ 100Hz |
| Lifetime @ Temp. | 29000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18.9 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 9 mOhms |
| Lead Spacing | 1.260" (32.00mm) |
| Size / Dimension | 3.606" Dia (91.60mm) |
| Height - Seated (Max) | 5.768" (146.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D451HPC472MEB5M | United Chemi-Con | CAP ALUM 4700UF 20% 450V SCREW | 100% | View |
| LNC2V472MSEH | Nichicon | CAP ALUM 4700UF 20% 350V SCREW | 84% | View |
| B43741B5478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 450V SCREW | 79% | View |
| ALS70A472QP630 | KEMET | CAP ALUM 4700UF 20% 630V SCREW | 71% | View |
| ALS71A472QH550 | KEMET | CAP ALUM 4700UF 20% 550V SCREW | 70% | View |
| MAL250075472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 350V SCREW | 68% | View |
Submit your RFQ for PEH200YY4470MB2 and get a quote within 24 hours.
