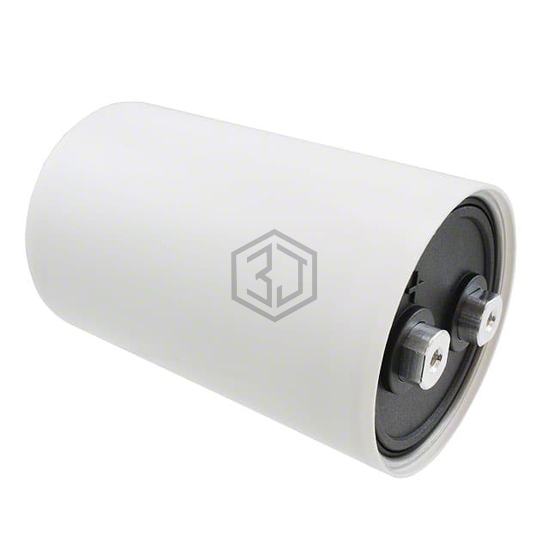

CAP ALUM 3300UF 20% 450V SCREW
PEH200YU433CMB2 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 3300UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,921
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 30mOhm @ 100Hz |
| Lifetime @ Temp. | 19000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 17 mOhms |
| Lead Spacing | 1.260" (32.00mm) |
| Size / Dimension | 3.016" Dia (76.60mm) |
| Height - Seated (Max) | 4.685" (119.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210417332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 450V SCREW | 95% | View |
| E37F501CPN332MDE3U | United Chemi-Con | CAP ALUM 3300UF 20% 500V SCREW | 93% | View |
| ALS80C332MF450 | KEMET | CAP ALUM 3300UF 20% 450V SCREW | 86% | View |
| MAL210258332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 385V SCREW | 80% | View |
| MAL210218332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 385V SCREW | 80% | View |
| E36D161HPN332MA92U | United Chemi-Con | CAP ALUM 3300UF 20% 160V SCREW | 56% | View |
Submit your RFQ for PEH200YU433CMB2 and get a quote within 24 hours.
