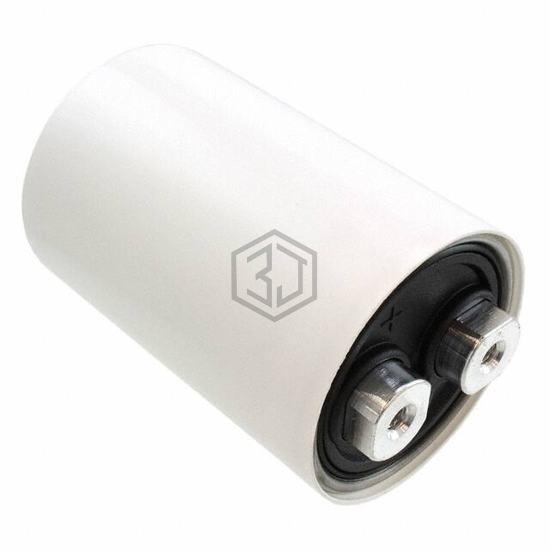

CAP ALUM 680UF 20% 400V SCREW
PEH169VH368VMU2 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 680UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,766
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100Hz |
| Lifetime @ Temp. | 14500 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 74 mOhms |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.032" Dia (51.60mm) |
| Height - Seated (Max) | 3.071" (78.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D401HPN681MA79U | United Chemi-Con | CAP ALUM 680UF 20% 400V SCREW | 100% | View |
| E36D451HPN681MAA5U | United Chemi-Con | CAP ALUM 680UF 20% 450V SCREW | 92% | View |
| MAL210266681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 400V SCREW | 86% | View |
| MAL210218681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 385V SCREW | 85% | View |
| MAL210225681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 350V SCREW | 77% | View |
| ALS71H681DE500 | KEMET | CAP ALUM 680UF 20% 500V SCREW | 64% | View |
Submit your RFQ for PEH169VH368VMU2 and get a quote within 24 hours.
