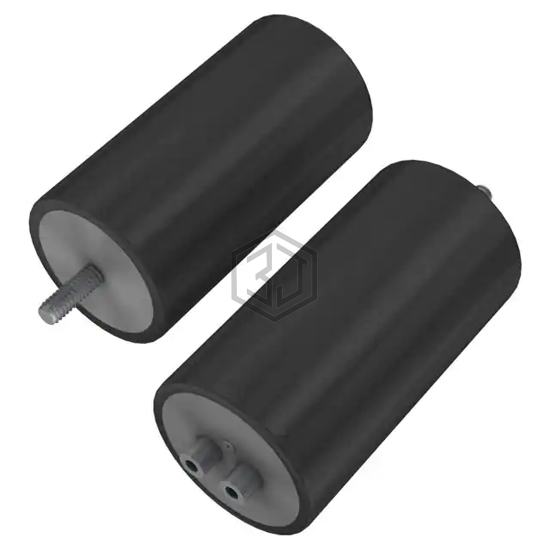

CAP ALUM 2200UF 250V SCREW
PEH169SO4220QB2 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 2200UF 250V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,813
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 56mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.559" Dia (65.00mm) |
| Height - Seated (Max) | 4.173" (106.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210422222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 200V SCREW | 86% | View |
| MAL210466222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 400V SCREW | 70% | View |
| MAL210487222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 450V SCREW | 62% | View |
| LNU2H222MSEG | Nichicon | CAP ALUM 2200UF 20% 500V SCREW | 56% | View |
| LNT2A222MSE | Nichicon | CAP ALUM 2200UF 20% 100V SCREW | 56% | View |
| LNUN7222MTEH | Nichicon | CAP ALUM 2200UF 20% 525V SCREW | 56% | View |
