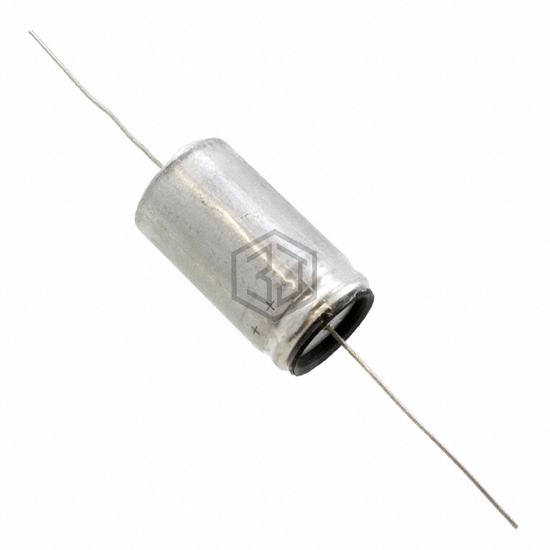

CAP ALUM 680UF 20% 63V AXIAL
PEG124MG368AQL1 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 680UF 20% 63V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 63 V, package / case Axial, Can.
In Stock: 2,083
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 140mOhm @ 100Hz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.09 A @ 100 Hz |
| Ripple Current @ High Frequency | 7.5 A @ 5 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia x 1.457" L (16.00mm x 37.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
PEG124MG368AQL1 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214668681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 99% | View |
| EGXF630ELL621ML20S | United Chemi-Con | CAP ALUM 620UF 20% 63V RADIAL TH | 92% | View |
| EGPD800ELL621MM20H | United Chemi-Con | CAP ALUM 620UF 20% 80V RADIAL | 61% | View |
| UBY1K621MHL | Nichicon | CAP ALUM 620UF 20% 80V RADIAL | 60% | View |
| UBY1K681MHL | Nichicon | CAP ALUM 680UF 20% 80V RADIAL | 59% | View |
| EGXF101ELL621ML40S | United Chemi-Con | CAP ALUM 620UF 20% 100V RAD TH | 57% | View |
