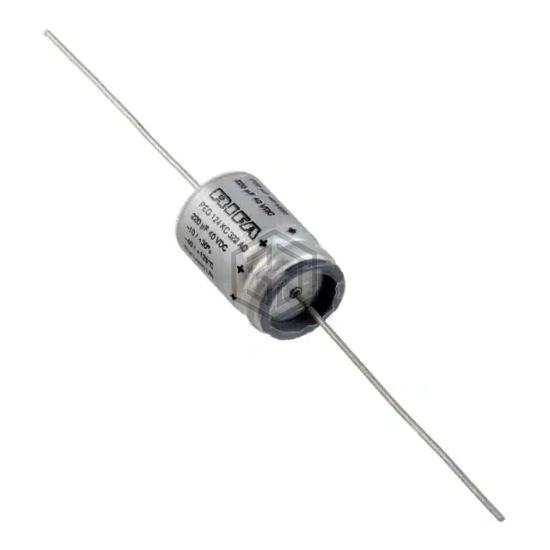

CAP ALUM 220UF 40V AXIAL
PEG124KC322AQL1 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 220UF 40V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 40 V, package / case Axial, Can.
In Stock: 54
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 220 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 440mOhm @ 100Hz |
| Lifetime @ Temp. | 2500 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 452 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.512" Dia x 0.787" L (13.00mm x 20.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
