FIXED IND 680NH 20.1A 4.4MOHM SM

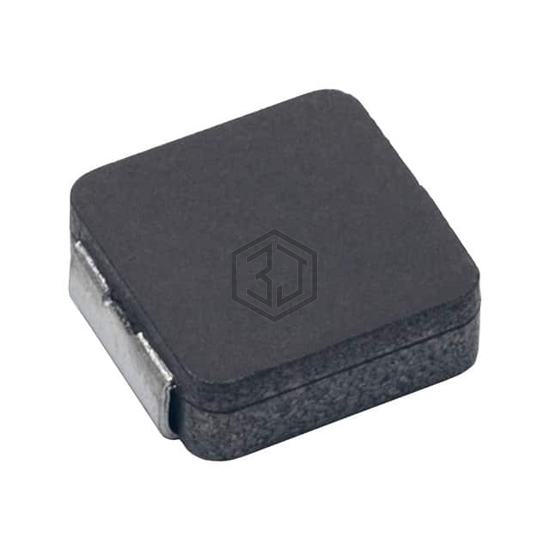

MPX1D0830LR68 is a Fixed Inductors manufactured by KEMET. FIXED IND 680NH 20.1A 4.4MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 20.1 A.
In Stock: 980
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20.1 A |
| Current - Saturation (Isat) | 28A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.341" L x 0.315" W (8.65mm x 8.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for MPX1D0830LR68 and get a quote within 24 hours.
