FIXED IND 150NH 23.2A 2.3MOHM SM

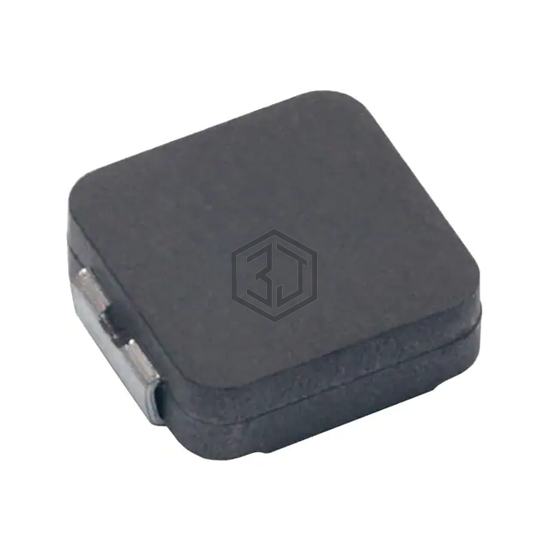

MPX1D0624LR15 is a Fixed Inductors manufactured by KEMET. FIXED IND 150NH 23.2A 2.3MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 23.2 A.
In Stock: 924
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 150 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 23.2 A |
| Current - Saturation (Isat) | 37A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.276" L x 0.256" W (7.00mm x 6.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
Submit your RFQ for MPX1D0624LR15 and get a quote within 24 hours.
