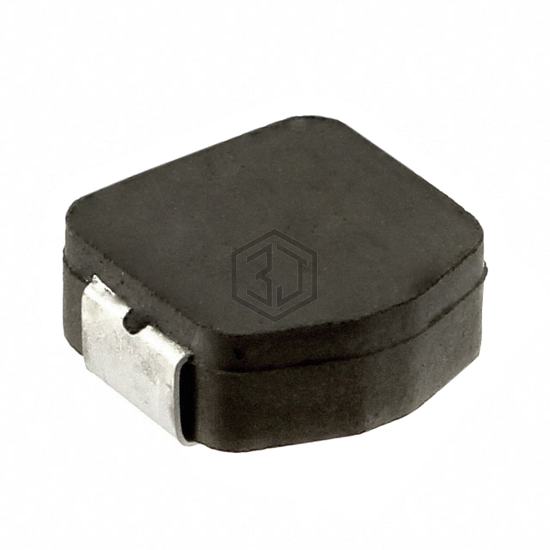

FIXED IND 470NH 15.8A 5 MOHM SMD
MPLCG0630LR47 is a Fixed Inductors manufactured by KEMET. FIXED IND 470NH 15.8A 5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 120°C, package / case Nonstandard, current rating (amps) 15.8 A.
In Stock: 327
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 15.8 A |
| Current - Saturation (Isat) | 15.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -20°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.295" L x 0.264" W (7.50mm x 6.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for MPLCG0630LR47 and get a quote within 24 hours.
