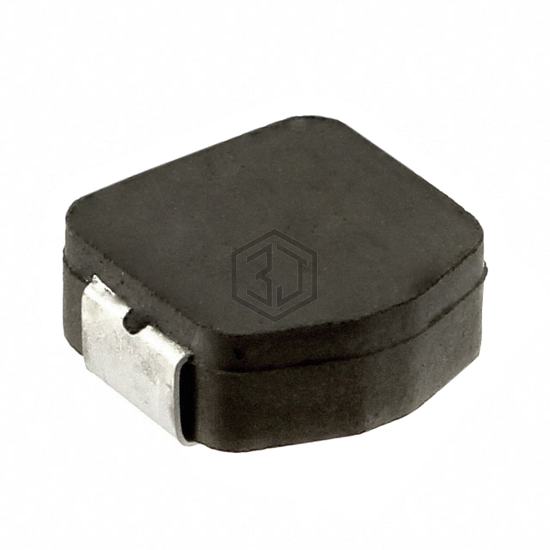

FIXED IND 4.7UH 5.5A 41 MOHM SMD
MPLCG0630L4R7 is a Fixed Inductors manufactured by KEMET. FIXED IND 4.7UH 5.5A 41 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 120°C, package / case Nonstandard, current rating (amps) 5.5 A.
In Stock: 5,228
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.5 A |
| Current - Saturation (Isat) | 5.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 41mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -20°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.295" L x 0.264" W (7.50mm x 6.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for MPLCG0630L4R7 and get a quote within 24 hours.
