FIXED IND 220NH 14.1A 3.7MOHM SM

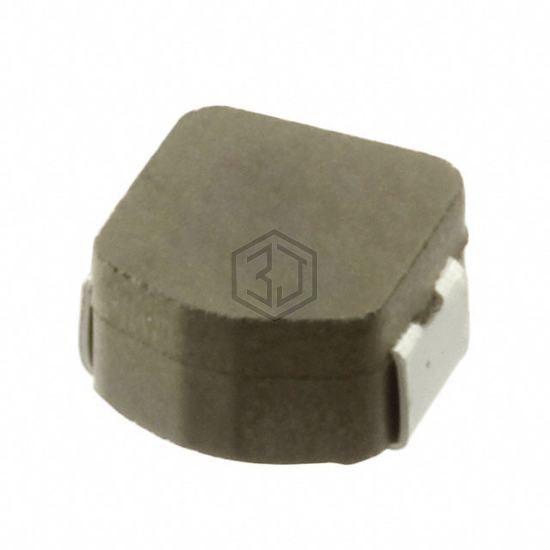

MPLCG0530LR22 is a Fixed Inductors manufactured by KEMET. FIXED IND 220NH 14.1A 3.7MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 120°C, package / case Nonstandard, current rating (amps) 14.1 A.
In Stock: 3,230
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 14.1 A |
| Current - Saturation (Isat) | 10.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -20°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.217" L x 0.197" W (5.50mm x 5.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for MPLCG0530LR22 and get a quote within 24 hours.
