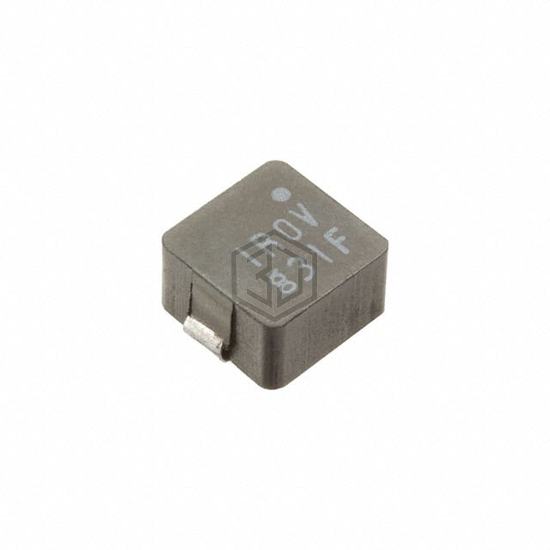

FIXED IND 680NH 32A 1.54MOHM SMD
MPCV1060LR68 is a Fixed Inductors manufactured by KEMET. FIXED IND 680NH 32A 1.54MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 32 A.
In Stock: 243
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 32 A |
| Current - Saturation (Isat) | 38A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.54mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.394" W (12.00mm x 10.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
