FIXED IND 1UH 26A 1.87 MOHM SMD

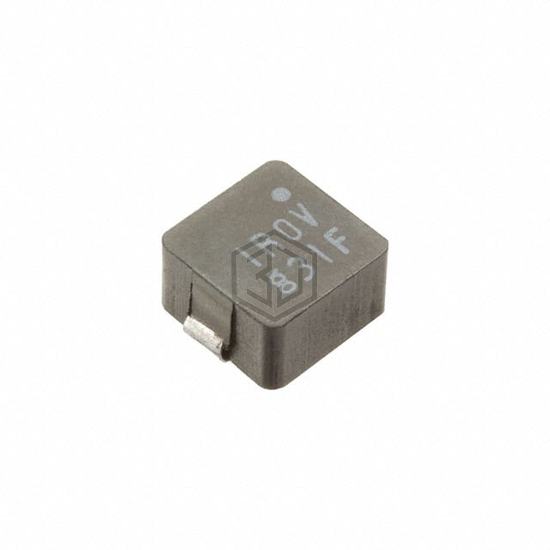

MPCV1060L1R0 is a Fixed Inductors manufactured by KEMET. FIXED IND 1UH 26A 1.87 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 26 A.
In Stock: 472
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 26 A |
| Current - Saturation (Isat) | 35A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.87mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.394" W (12.00mm x 10.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for MPCV1060L1R0 and get a quote within 24 hours.
