FIXED IND 880NH 17A 2.3 MOHM SMD

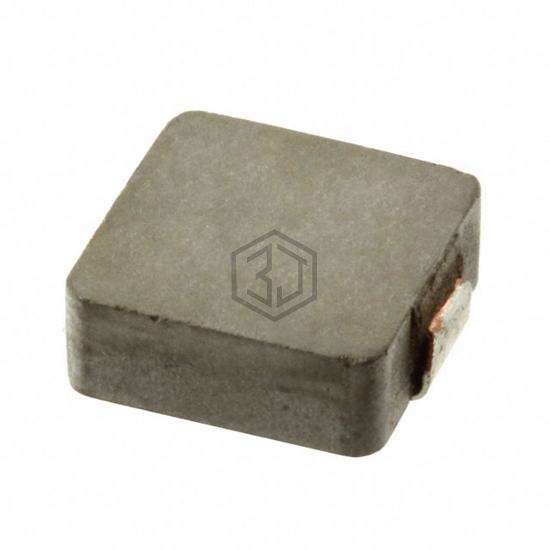

MPCG1040LR88 is a Fixed Inductors manufactured by KEMET. FIXED IND 880NH 17A 2.3 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 120°C, package / case Nonstandard, current rating (amps) 17 A.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 880 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17 A |
| Current - Saturation (Isat) | 19A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -20°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for MPCG1040LR88 and get a quote within 24 hours.
