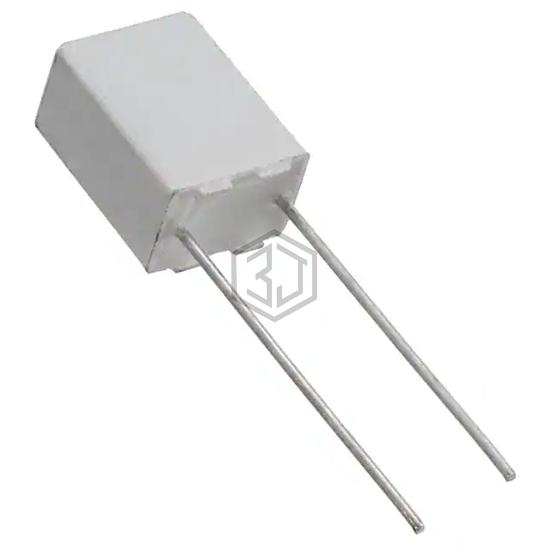

CAP FILM 0.022UF 5% 63VDC RADIAL
MMK5223J63J01L16.5TA18 is a Film Capacitors manufactured by KEMET. CAP FILM 0.022UF 5% 63VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 63V, package / case Radial.
In Stock: 3,057
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.022 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 40V |
| Voltage Rating - DC | 63V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.283" L x 0.098" W (7.20mm x 2.50mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC2370GF223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 630VDC RAD | 56% | View |
| MKP385322125JF02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 1.25KVDC RAD | 56% | View |
| MKP385322063JD02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 630VDC RAD | 56% | View |
| MKP1841322104M | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 1KVDC RADIAL | 56% | View |
| MKP385322200JKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 2KVDC RADIAL | 56% | View |
| BFC233629022 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 10% 630VDC RAD | 56% | View |
