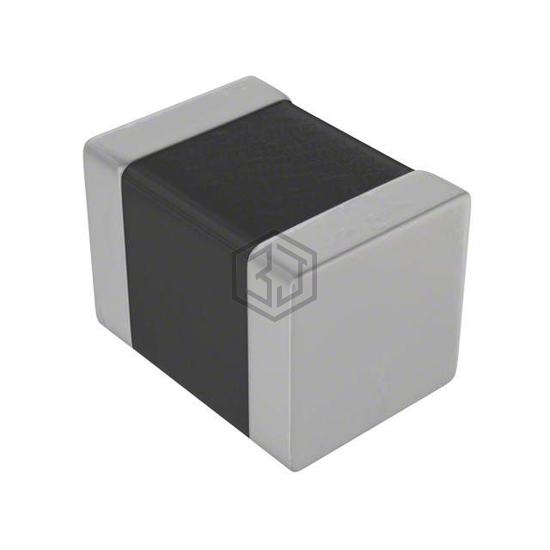

FIXED IND 4.7UH 240MA 130MOHM SM
L1007C4R7MPWST is a Fixed Inductors manufactured by KEMET. FIXED IND 4.7UH 240MA 130MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 1007 (2518 Metric), current rating (amps) 240 mA.
In Stock: 4,508
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 240 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 130mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 46MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1007 (2518 Metric) |
| Supplier Device Package | 1007 (2518 Metric) |
| Size / Dimension | 0.098" L x 0.071" W (2.50mm x 1.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for L1007C4R7MPWST and get a quote within 24 hours.
