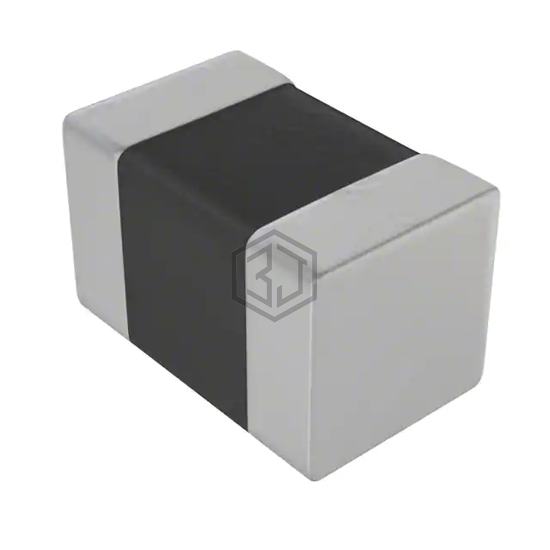

FIXED IND 1UH 700MA 190 MOHM SMD
L0805C1R0MDWIT is a Fixed Inductors manufactured by KEMET. FIXED IND 1UH 700MA 190 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 0805 (2012 Metric), current rating (amps) 700 mA.
In Stock: 4,994
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 190mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 100MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.083" L x 0.059" W (2.11mm x 1.50mm) |
| Height - Seated (Max) | 0.041" (1.04mm) |
Submit your RFQ for L0805C1R0MDWIT and get a quote within 24 hours.
