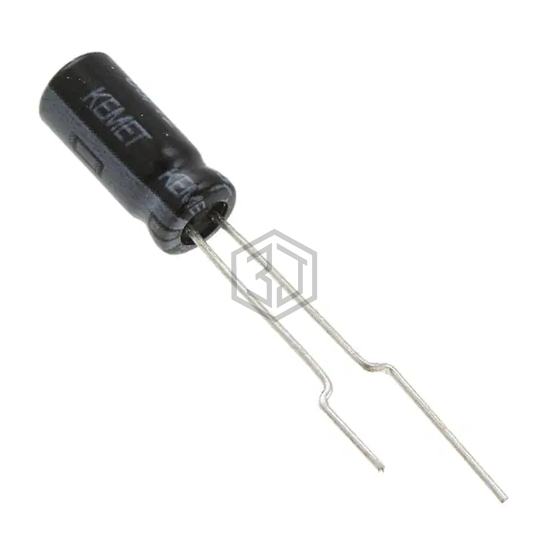

CAP ALUM 47UF 20% 25V RADIAL
ESY476M025AC3EA is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 47UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,263
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 300mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 250 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for ESY476M025AC3EA and get a quote within 24 hours.
