CAP ALUM 330UF 20% 25V RADIAL

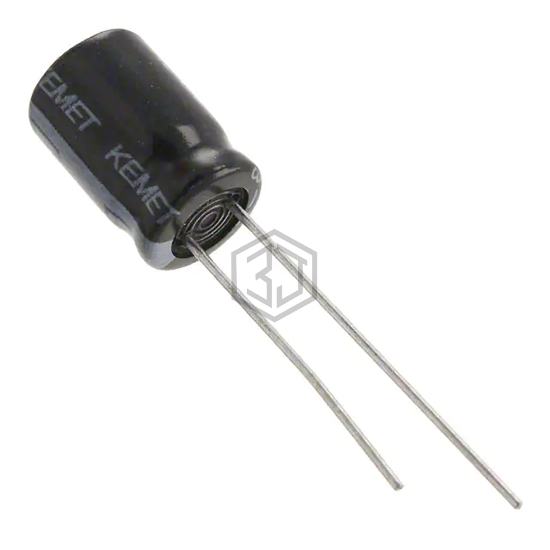

ESY337M025AG8AA is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 12,327
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 56mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | 56 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for ESY337M025AG8AA and get a quote within 24 hours.
