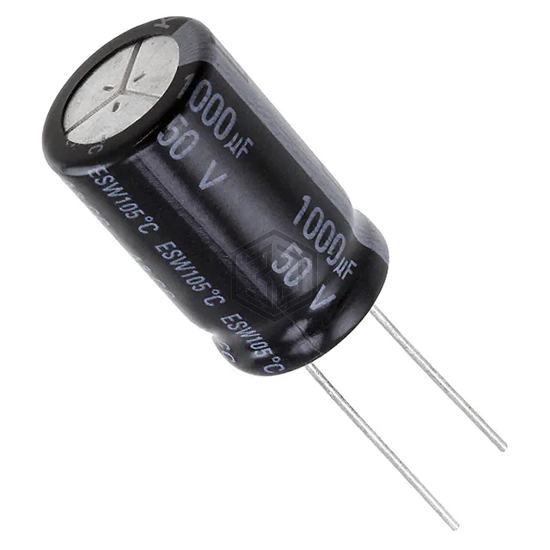

CAP ALUM 1000UF 20% 50V RADIAL
ESW108M050AM7AA is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 1000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,750
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 35mOhm @ 100kHz |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.533 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.555 A @ 100 kHz |
| Impedance | 34 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKY-500ELL102MM20S | United Chemi-Con | CAP ALUM 1000UF 20% 50V RADIAL | 98% | View |
| MAL204838102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 63V RADIAL | 79% | View |
| UPA1E102MHD3TO | Nichicon | CAP ALUM 1000UF 20% 25V RADIAL | 70% | View |
| EKZN160ELL102MJ16S | United Chemi-Con | CAP ALUM 1000UF 20% 16V RADIAL | 70% | View |
| MAL212025102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V AXIAL | 67% | View |
| 381LX102M050H202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 50V SNAP | 65% | View |
Submit your RFQ for ESW108M050AM7AA and get a quote within 24 hours.
