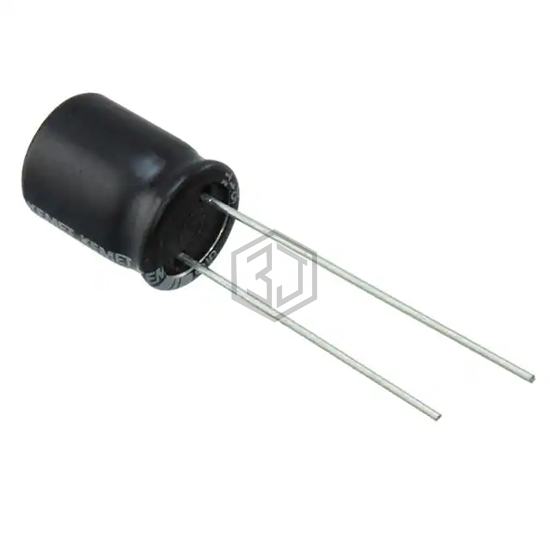

CAP ALUM 470UF 20% 25V RADIAL
ESL477M025AH9AA is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,722
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 43mOhm @ 100kHz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 662.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.325 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV250ELL471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 94% | View |
| ELXY500ELL471MK25S | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 73% | View |
| ELXV500ELL471MK25S | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 73% | View |
| UBT1H471MHD | Nichicon | CAP ALUM 470UF 20% 50V RADIAL | 68% | View |
| MAL214851471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 64% | View |
| ELXY160ELL471MH20D | United Chemi-Con | CAP ALUM 470UF 20% 16V RADIAL | 59% | View |
Submit your RFQ for ESL477M025AH9AA and get a quote within 24 hours.
