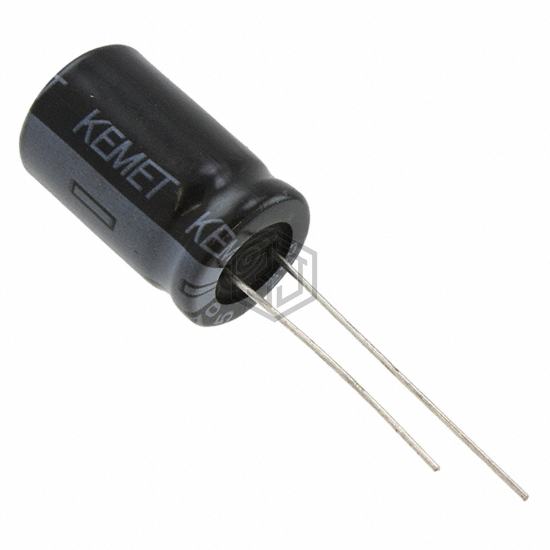

CAP ALUM 470UF 20% 50V RADIAL
ESH477M050AL3AA is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 470UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 65
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 730 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.095 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215098476E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 86% | View |
| 50PX470MEFCCA10X20 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 85% | View |
| UBT1V471MHD8 | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 82% | View |
| EK1V471MP51016EU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 76% | View |
| EL1C471MNN1011 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 76% | View |
| MAL211948471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 63V AXIAL | 76% | View |
Submit your RFQ for ESH477M050AL3AA and get a quote within 24 hours.
