CAP ALUM 2200UF 20% 50V RADIAL

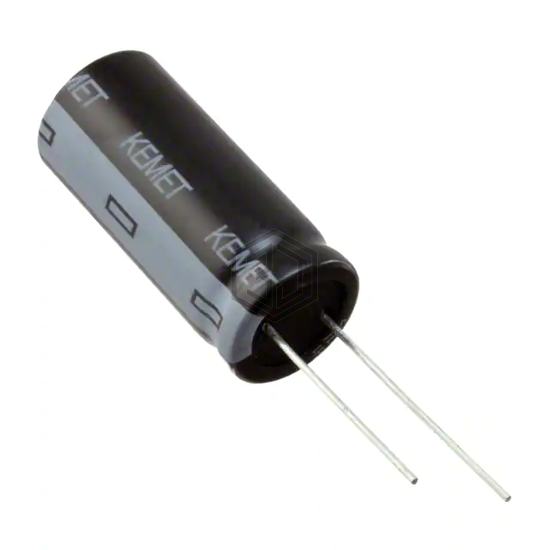

ESH228M050AM3AA is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 2200UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,056
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.84 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.496" (38.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1A222MHD3TO | Nichicon | CAP ALUM 2200UF 20% 10V RADIAL | 78% | View |
| UBT1V222MHD | Nichicon | CAP ALUM 2200UF 20% 35V RADIAL | 75% | View |
| RXK222M1VBK-1632S | SURGE | CAP ALUM 2200UF 20% 35V RADIAL | 73% | View |
| 50ZLJ2200M18X25 | Rubycon | CAP ALUM 2200UF 20% 50V RADIAL | 72% | View |
| UBT1E222MHD | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 67% | View |
| EEU-TP1E222S | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V RADIAL | 67% | View |
Submit your RFQ for ESH228M050AM3AA and get a quote within 24 hours.
