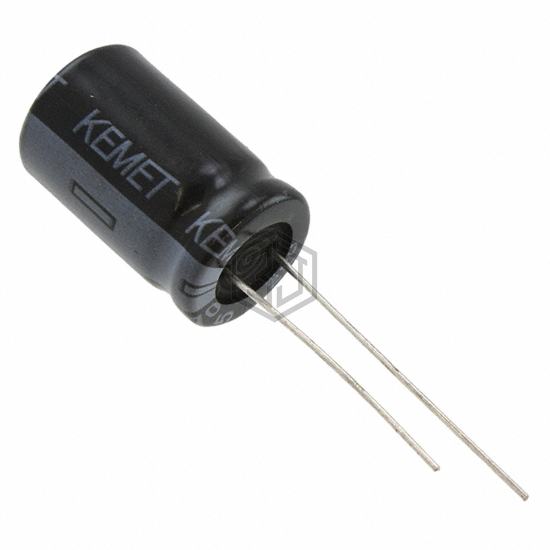

CAP ALUM 1000UF 20% 25V RADIAL
ESH108M025AL3AA is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 1000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,828
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 855 mA @ 120 Hz |
| Ripple Current @ High Frequency | 983.25 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT1C102MHD1TO | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 73% | View |
| UHE1E102MHT3 | Nichicon | CAP ALUM 1000UF 20% 25V RADIAL | 71% | View |
| ESW108M010AH2AA | KEMET | CAP ALUM RAD 105C | 70% | View |
| SXR102M010ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 10V RADIAL | 69% | View |
| KMG100VB102M18X40LL | United Chemi-Con | CAP ALUM 1000UF 20% 100V RADIAL | 66% | View |
| 10ZLG1000MEFCTA8X20 | Rubycon | CAP ALUM 1000UF 20% 10V RADIAL | 65% | View |
Submit your RFQ for ESH108M025AL3AA and get a quote within 24 hours.
