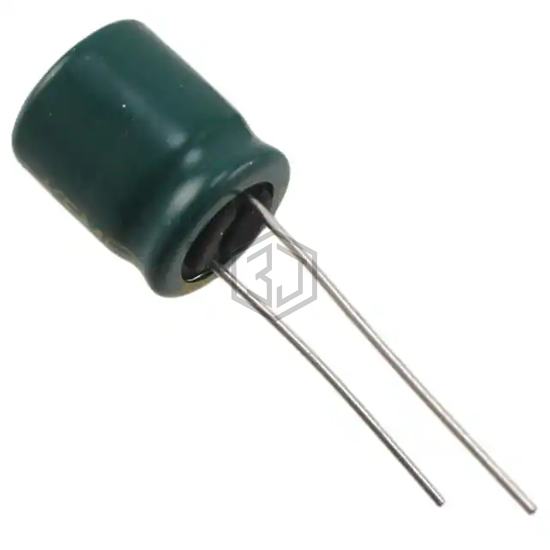

CAP ALUM 220UF 20% 35V RADIAL
ESC227M035AH1AA is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 220UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 5,430
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 69mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 560 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | 69 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 757D227M025CC3D | Vishay Sprague | CAP ALUM 220UF 20% 25V RADIAL | 80% | View |
| 601D227F050FE1 | Vishay Sprague | CAP ALUM 220UF 50V AXIAL | 77% | View |
| MAL211927221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 40V AXIAL | 75% | View |
| EEU-FM1V221B | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V RADIAL | 73% | View |
| EY1J221MNN1016F6 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 67% | View |
| MAL215035221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for ESC227M035AH1AA and get a quote within 24 hours.
