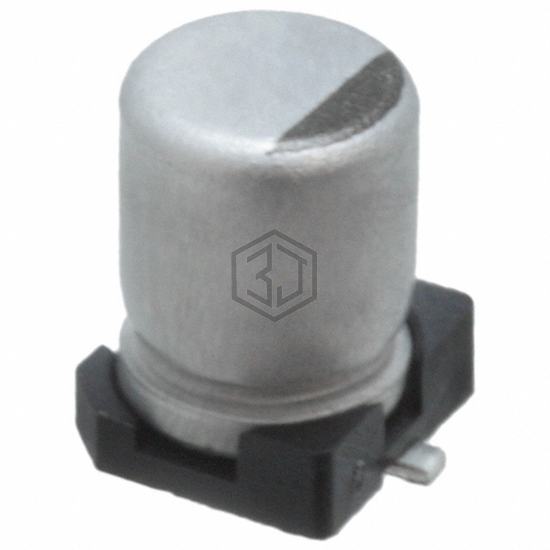

CAP ALUM 47UF 20% 4V SMD
EDK476M004A9BAA is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 47UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 1,356
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 34 mA @ 120 Hz |
| Ripple Current @ High Frequency | 42.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.222" (5.64mm) |
| Surface Mount Land Size | 0.169" L x 0.217" W (4.30mm x 5.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215373479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 6.3V SMD | 79% | View |
| EDH476M6R3A9DAA | KEMET | CAP ALUM 47UF 20% 6.3V SMD | 72% | View |
| 476SMH6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 6.3V SMD | 71% | View |
| RVS-16V470MF55U-R | Elna America | CAP 47UF 16V SMD | 63% | View |
| UZG1C470MCL1GB | Nichicon | CAP ALUM 47UF 20% 16V SMD | 62% | View |
| EMVY350ADA470MF61G | United Chemi-Con | CAP ALUM 47UF 20% 35V SMD | 52% | View |
Submit your RFQ for EDK476M004A9BAA and get a quote within 24 hours.
