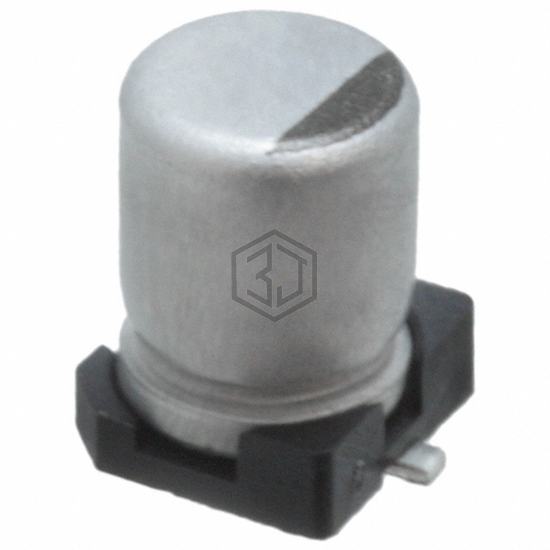

CAP ALUM 3.3UF 20% 35V SMD
EDK335M035A9BAA is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 3.3UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,644
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10 mA @ 120 Hz |
| Ripple Current @ High Frequency | 12.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.222" (5.64mm) |
| Surface Mount Land Size | 0.169" L x 0.217" W (4.30mm x 5.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWX1V3R3MCR2GB | Nichicon | CAP ALUM 3.3UF 20% 35V SMD | 96% | View |
| AVS335M35A12B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 3.3UF 20% 35V SMD | 93% | View |
| 25MF335KB33225 | Rubycon | CAP FILM 3.3UF 10% 25VDC 1210 | 78% | View |
| MVKBP50VC3R3ME60TP | United Chemi-Con | CAP ALUM 3.3UF 20% 50V SMD | 77% | View |
| EEE-1EA3R3NR | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 25V SMD | 74% | View |
| UUD1H3R3MCL1GS | Nichicon | CAP ALUM 3.3UF 20% 50V SMD | 58% | View |
Submit your RFQ for EDK335M035A9BAA and get a quote within 24 hours.
