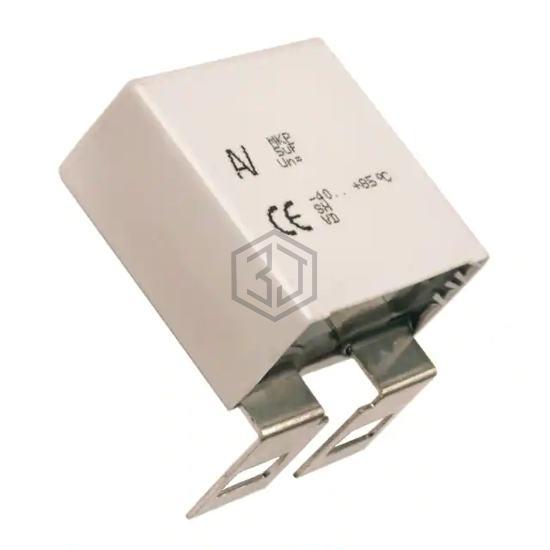

CAP FILM 5UF 5% 850VDC SCREW
C4BTMBX4500ZALJ is a Film Capacitors manufactured by KEMET. CAP FILM 5UF 5% 850VDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 850V, package / case Rectangular Box.
In Stock: 9,819
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 450V |
| Voltage Rating - DC | 850V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 2.2 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 1.181" W (42.00mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.004" (25.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M550085YT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 850VDC SCREW | 100% | View |
| MKP386M550085YT4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 850VDC SCREW | 100% | View |
| PMB1854500KVR | Nichicon | FILM CAP BOXED LUGS | 99% | View |
| 505HC6500K4TM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 5UF 10% 500VAC CHAS MT | 98% | View |
| 505HC4500K2EM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 5UF 10% 500VAC CHAS MT | 98% | View |
| PMB1704500KAP | Nichicon | FILM CAP BOXED LUGS | 96% | View |
Submit your RFQ for C4BTMBX4500ZALJ and get a quote within 24 hours.
