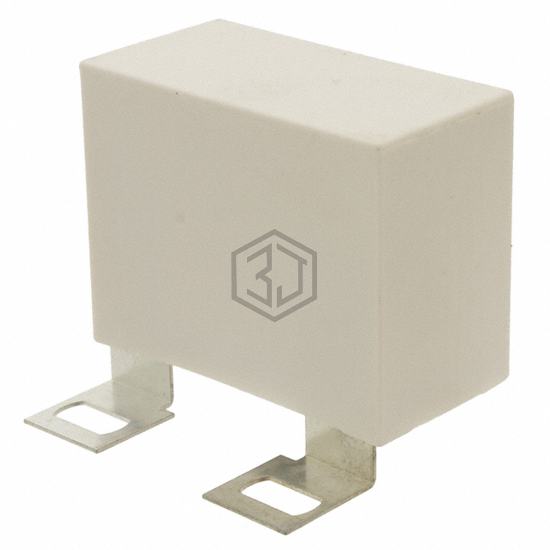

CAP FILM 0.47UF 5% 3KVDC SCREW
C4BSYBX3470ZBMJ is a Film Capacitors manufactured by KEMET. CAP FILM 0.47UF 5% 3KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 3000V (3kV), package / case Rectangular Box.
In Stock: 136
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.47 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 750V |
| Voltage Rating - DC | 3000V (3kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 7.5 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 2.264" L x 1.181" W (57.50mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.457" (37.00mm) |
| Applications | DC Link, DC Filtering; Snubber |
| Ratings | - |
| Features | - |
Submit your RFQ for C4BSYBX3470ZBMJ and get a quote within 24 hours.
