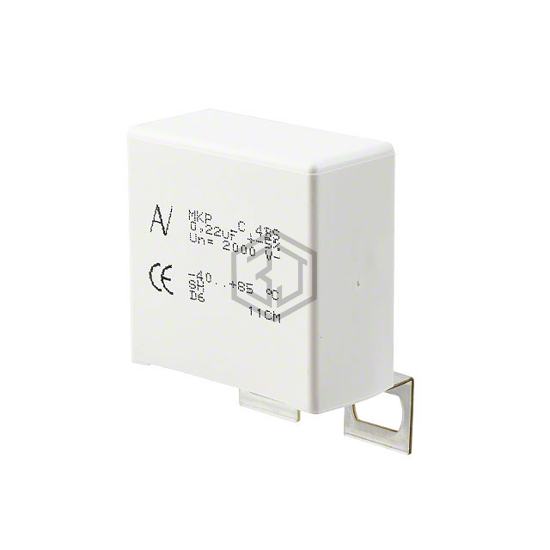

CAP FILM 0.22UF 5% 2KVDC SCREW
C4BSWBX3220ZAFJ is a Film Capacitors manufactured by KEMET. CAP FILM 0.22UF 5% 2KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 2000V (2kV), package / case Rectangular Box.
In Stock: 106
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.22 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 10.7 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.004" (25.50mm) |
| Applications | DC Link, DC Filtering; Snubber |
| Ratings | - |
| Features | - |
Submit your RFQ for C4BSWBX3220ZAFJ and get a quote within 24 hours.
