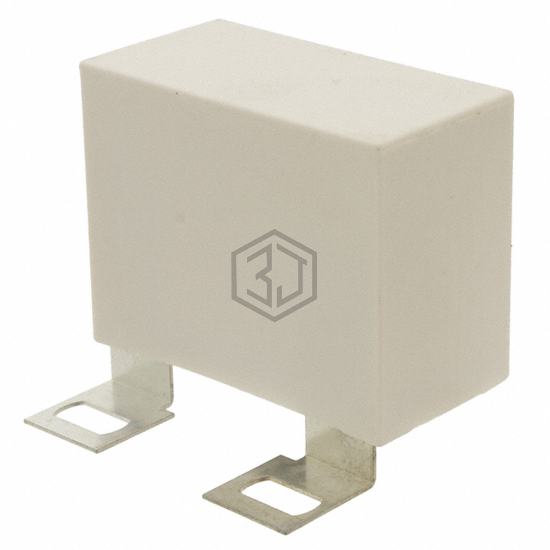

CAP FILM 2UF 5% 1.2KVDC SCREW
C4BSPBX4200ZBMJ is a Film Capacitors manufactured by KEMET. CAP FILM 2UF 5% 1.2KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 1200V (1.2kV), package / case Rectangular Box.
In Stock: 2,644
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 630V |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3.6 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 2.264" L x 1.181" W (57.50mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.457" (37.00mm) |
| Applications | DC Link, DC Filtering; Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| C4BSPBX4200ZAMJ | KEMET | CAP FILM 2UF 5% 1.2KVDC SCREW | 100% | View |
| 205PMB102KSP0 | Cornell Dubilier / Illinois Capacitor | CAP FILM 2UF 10% 1KVDC CHAS MT | 96% | View |
| PMB2104200KAPA | Nichicon | FILM CAP BOXED LUGS | 96% | View |
| MKP386M520160YT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 1.6KVDC SCREW | 95% | View |
| MKP386M520160YT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 1.6KVDC SCREW | 95% | View |
| PMB1854200KVRA | Nichicon | FILM CAP BOXED LUGS | 92% | View |
Submit your RFQ for C4BSPBX4200ZBMJ and get a quote within 24 hours.
