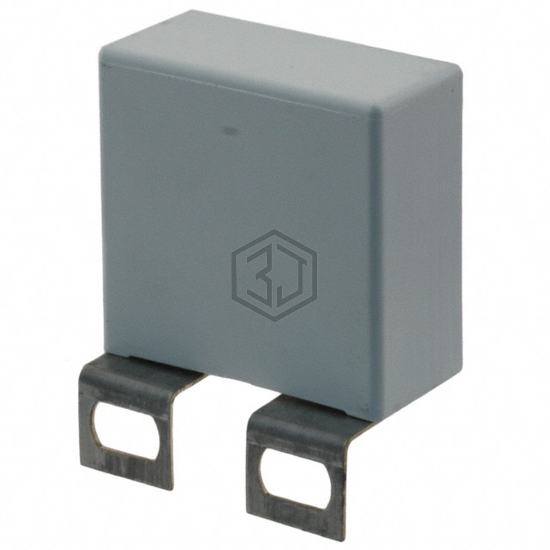

CAP FILM 0.47UF 5% 1.2KVDC SCREW
C4BSPBX3470ZAFJ is a Film Capacitors manufactured by KEMET. CAP FILM 0.47UF 5% 1.2KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 1200V (1.2kV), package / case Rectangular Box.
In Stock: 38
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.47 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 630V |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 6.7 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.004" (25.50mm) |
| Applications | DC Link, DC Filtering; Snubber |
| Ratings | - |
| Features | - |
Submit your RFQ for C4BSPBX3470ZAFJ and get a quote within 24 hours.
