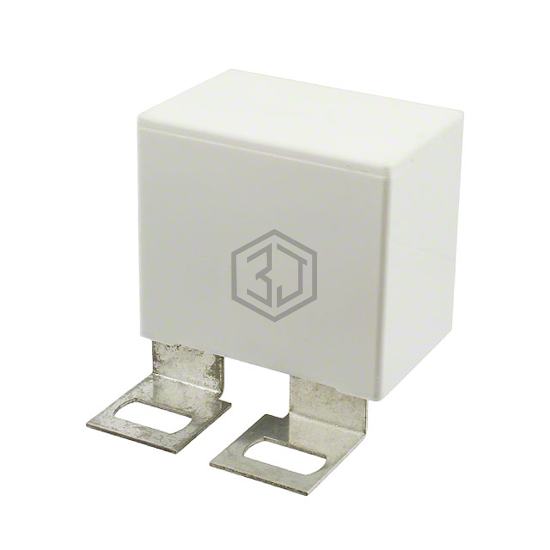

CAP FILM 1.5UF 5% 1KVDC SCREW
C4BSNBX4150ZBJJ is a Film Capacitors manufactured by KEMET. CAP FILM 1.5UF 5% 1KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 1000V (1kV), package / case Rectangular Box.
In Stock: 5,592
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1.5 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 600V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 2.5 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.673" L x 1.102" W (42.50mm x 28.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 0.866" (22.00mm) |
| Applications | DC Link, DC Filtering; Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M515100JT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.5UF 5% 1KVDC SCREW | 97% | View |
| C4BSPBX4150ZBLJ | KEMET | CAP FILM 1.5UF 5% 1.2KVDC SCREW | 97% | View |
| MKP386M515100JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.5UF 5% 1KVDC SCREW | 97% | View |
| PMB2124150KSL | Nichicon | FILM CAP BOXED LUGS | 97% | View |
| MKP386M515125JT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.5UF 5% 1.25KVDC SCREW | 96% | View |
| MKP386M515125JT4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.5UF 5% 1.25KVDC SCREW | 96% | View |
Submit your RFQ for C4BSNBX4150ZBJJ and get a quote within 24 hours.
