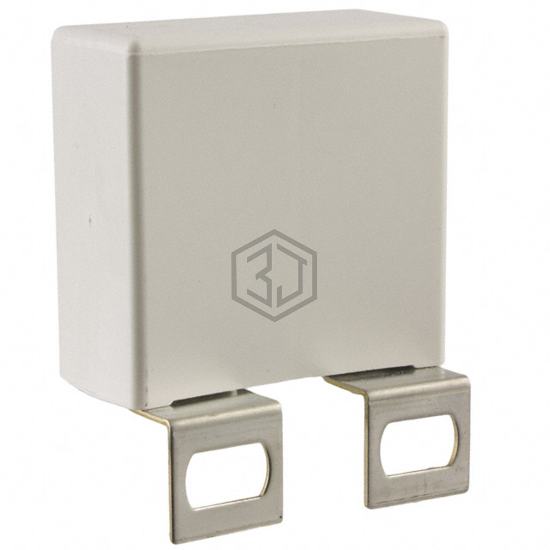

CAP FILM 1UF 5% 850VDC SCREW
C4BSMBX4100ZAFJ is a Film Capacitors manufactured by KEMET. CAP FILM 1UF 5% 850VDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 850V, package / case Rectangular Box.
In Stock: 2,513
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 550V |
| Voltage Rating - DC | 850V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.004" (25.50mm) |
| Applications | DC Link, DC Filtering; Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M510085JT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 5% 850VDC SCREW | 97% | View |
| B32656S0105J564 | EPCOS - TDK Electronics | CAP FILM 1UF 5% 1KVDC SCREW | 96% | View |
| MKP386M510125JT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 5% 1.25KVDC SCREW | 95% | View |
| PMB2124100KVR | Nichicon | 1200V,1UF,10 PERCENT, LUG MOUNT | 93% | View |
| B32656S7105J561 | EPCOS - TDK Electronics | CAP FILM 1UF 5% 1.25KVDC SCREW | 93% | View |
| PMB2124100KVRA | Nichicon | FILM CAP BOXED LUGS | 93% | View |
