CAP FILM 22UF 5% 1KVDC RADIAL

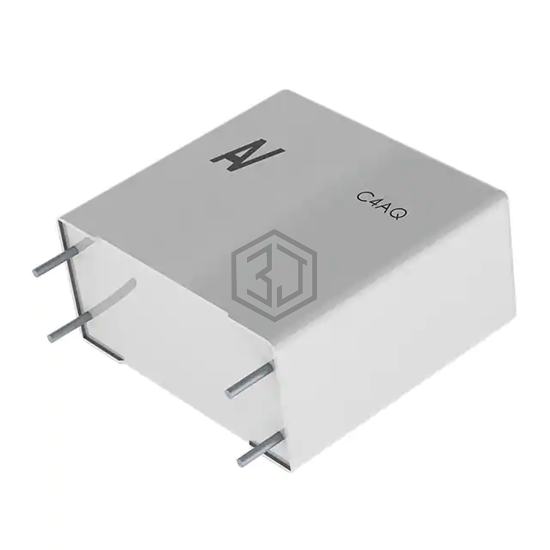

C4AQNBW5220M36J is a Film Capacitors manufactured by KEMET. CAP FILM 22UF 5% 1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1000V (1kV), package / case Radial - 4 Leads.
In Stock: 4,828
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3.6 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 1.654" L x 1.378" W (42.00mm x 35.00mm) |
| Height - Seated (Max) | 1.819" (46.20mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | Low ESL |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKS4J052209HD4MSC9 | WIMA | CAP FILM 22UF 630VDC RAD 4 LEAD | 92% | View |
| MKS4J052209HD4KSSD | WIMA | CAP FILM 22UF 630VDC RAD 4 LEAD | 92% | View |
| C4AF1BW5220T3OK | KEMET | FILM, POWER, METALLIZED POLYPROP | 88% | View |
| MKS4F052207F00KSC9 | WIMA | CAP FILM 22UF 10% 250VDC RADIAL | 75% | View |
| MKT1820622015 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 22UF 10% 100VDC RADIAL | 71% | View |
| B32523R0226K000 | EPCOS - TDK Electronics | CAP FILM 22UF 10% 63VDC RADIAL | 71% | View |
Submit your RFQ for C4AQNBW5220M36J and get a quote within 24 hours.
