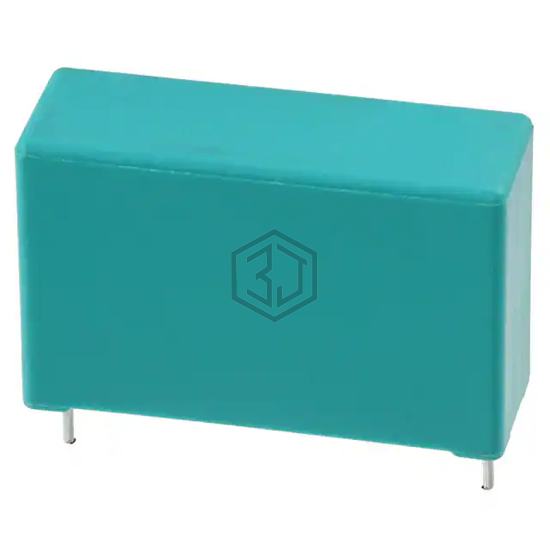

CAP FILM 2.7UF 5% 700VDC RADIAL
C4AEJBU4270A1WJ is a Film Capacitors manufactured by KEMET. CAP FILM 2.7UF 5% 700VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 700V, package / case Radial.
In Stock: 8,435
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.7 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 700V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 18.3 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.433" W (31.50mm x 11.00mm) |
| Height - Seated (Max) | 0.795" (20.20mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| C4AQIBU4270M1WJ | KEMET | CAP FILM 2.7UF 5% 800VDC RADIAL | 98% | View |
| C4AEOBU4270A1XJ | KEMET | CAP FILM 2.7UF 5% 900VDC RADIAL | 96% | View |
| MKP385527125JPM4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 5% 1.25KVDC RAD | 90% | View |
| MKP385527125JPM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 5% 1.25KVDC RAD | 90% | View |
| MKP385527040JKM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 5% 400VDC RADIAL | 90% | View |
| MABA044270KGS | Nichicon | FILM CAP BOXED RADIAL | 89% | View |
Submit your RFQ for C4AEJBU4270A1WJ and get a quote within 24 hours.
