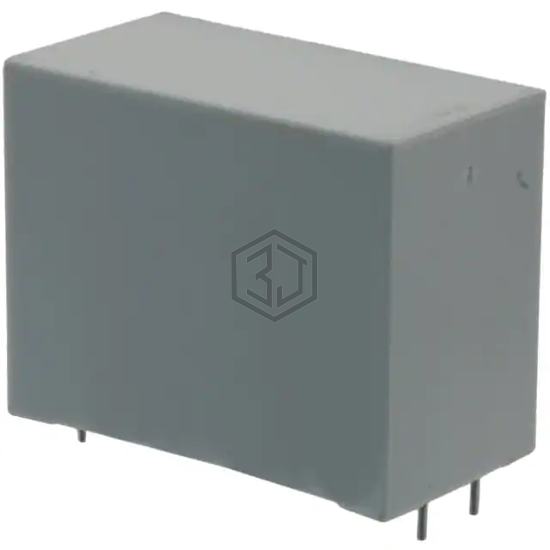

CAP FILM 55UF 5% 600VDC RADIAL
C4AEHBW5550A3MJ is a Film Capacitors manufactured by KEMET. CAP FILM 55UF 5% 600VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 600V, package / case Radial - 4 Leads.
In Stock: 7,602
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 55 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 600V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.1 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.181" W (57.50mm x 30.00mm) |
| Height - Seated (Max) | 1.783" (45.30mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MHBS405550KRSD | Nichicon | 700V,55UF,10 PERCENT, RADIAL BOX | 97% | View |
| B32778Z8556K000 | EPCOS - TDK Electronics | CAP FILM 55UF 800VDC RDL 4 LEAD | 95% | View |
| MKP1848655084Y5 | Vishay Beyschlag/Draloric/BC Components | MKP 55UF 5% 800VDC RADIAL PITCH | 95% | View |
| MKP1848C65580JY2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 55UF 5% 800VDC RADIAL | 95% | View |
| MKP1848C65590JY5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 55UF 5% 900VDC RADIAL | 93% | View |
| PHB1335550KRST | Nichicon | FILM CAP BOXED RADIAL | 89% | View |
Submit your RFQ for C4AEHBW5550A3MJ and get a quote within 24 hours.
