CAP FILM 20UF 5% 450VDC RADIAL

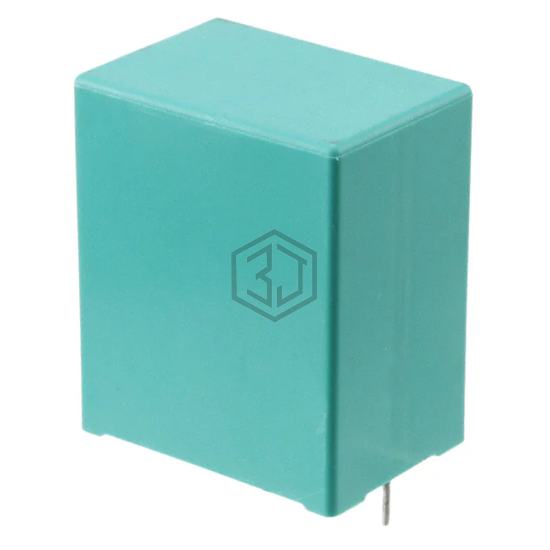

C4AEGBU5200A12J is a Film Capacitors manufactured by KEMET. CAP FILM 20UF 5% 450VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 450V, package / case Radial.
In Stock: 9,590
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 20 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 450V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.8 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.866" W (31.50mm x 22.00mm) |
| Height - Seated (Max) | 1.465" (37.20mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F339MX262031MYI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 20UF 20% 450VDC RADIAL | 100% | View |
| MABA035200KJL | Nichicon | FILM CAP BOXED RADIAL | 98% | View |
| MKP385620040JYP5T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 20UF 5% 400VDC RADIAL | 98% | View |
| MKPFAW52009ED4KSSD | WIMA | CAP FILM 20UF 10% 630VDC RADIAL | 94% | View |
| MKP1847C620355Y2 | Vishay Beyschlag/Draloric/BC Components | MKP 20F 10% 350VAC PITCH 52,5 | 92% | View |
| MKP1848H62070JP4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 20UF 5% 700VDC RADIAL | 92% | View |
