CAP ALUM 30000UF 20% 200V SCREW

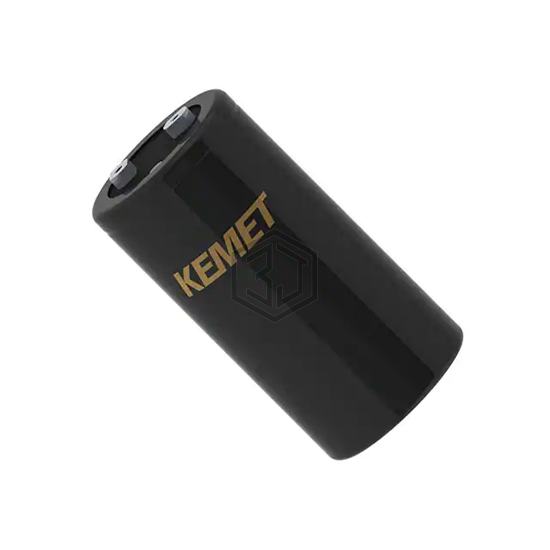

ALS71C303QP200 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 30000UF 20% 200V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,055
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 30000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 15mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 26.7 A @ 100 Hz |
| Ripple Current @ High Frequency | 32 A @ 10 kHz |
| Impedance | 13 mOhms |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 5.827" (148.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS71H303QP200 | KEMET | CAP ALUM 30000UF 20% 200V SCREW | 100% | View |
| CGS303T200X8L | Cornell Dubilier Electronics (CDE) | CAP ALUM 30000UF 200V SCREW | 95% | View |
| ALS81H303QS250 | KEMET | CAP ALUM 30000UF 20% 250V SCREW | 90% | View |
| ALS80C303QT250 | KEMET | CAP ALUM 30000UF 20% 250V SCREW | 90% | View |
| ALS80H303MF100 | KEMET | CAP ALUM 30000UF 20% 100V SCREW | 70% | View |
| HVMLS283M5R0EA0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 28000UF 20% 5V FLATPACK | 60% | View |
Submit your RFQ for ALS71C303QP200 and get a quote within 24 hours.
