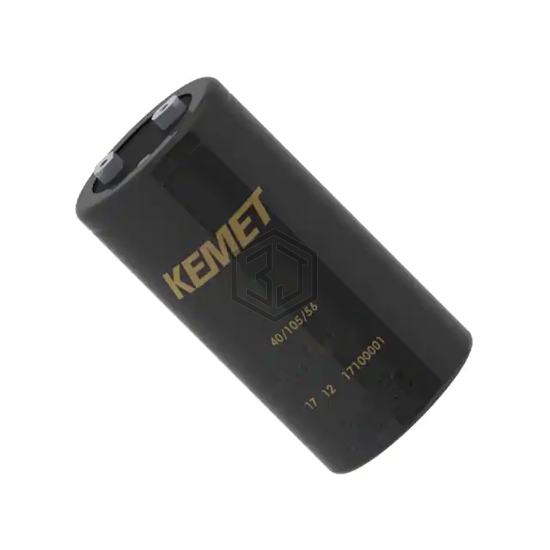

CAP ALUM 5600UF 20% 630V SCREW
ALS70A562QW630 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 5600UF 20% 630V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 630 V, package / case Radial, Can - Screw Terminals.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 630 V |
| ESR (Equivalent Series Resistance) | 31mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 21.5 A @ 100 Hz |
| Ripple Current @ High Frequency | 33.3 A @ 10 kHz |
| Impedance | 21 mOhms |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 6.654" (169.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
