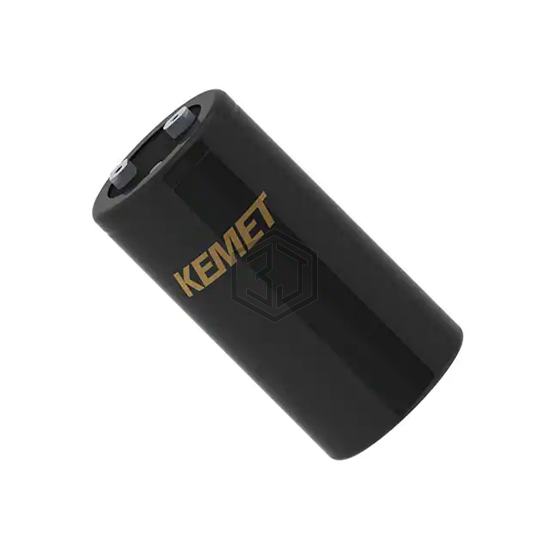

CAP ALUM 2000UF 20% 400V SCREW
ALS70A202KE400 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 2000UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 87mOhm @ 100Hz |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.6 A @ 100 Hz |
| Ripple Current @ High Frequency | 13.6 A @ 10 kHz |
| Impedance | 52 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.307" (84.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for ALS70A202KE400 and get a quote within 24 hours.
