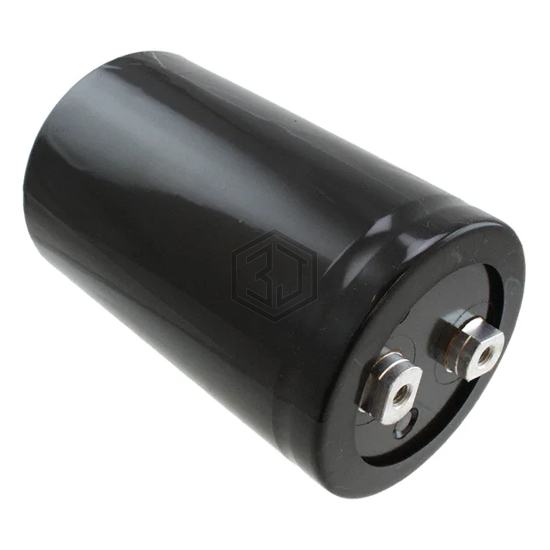

CAP ALUM 33000UF 20% 63V SCREW
ALS40A333MF063 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 33000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,940
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 8mOhm @ 100Hz |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 21.3 A @ 100 Hz |
| Ripple Current @ High Frequency | 22.2 A @ 10 kHz |
| Impedance | 7 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.598" Dia (66.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D101HPC333MEA5U | United Chemi-Con | CAP ALUM 33000UF 20% 100V SCREW | 76% | View |
| ALS81H333NT200 | KEMET | CAP ALUM 33000UF 20% 200V SCREW | 71% | View |
| E32D101HPN333MDD0U | United Chemi-Con | CAP ALUM 33000UF 20% 100V SCREW | 71% | View |
| LNT2A333MSEN | Nichicon | CAP ALUM 33000UF 20% 100V SCREW | 70% | View |
| ALS80A333QW200 | KEMET | CAP ALUM 33000UF 20% 200V SCREW | 67% | View |
| ALS80C333QW200 | KEMET | CAP ALUM 33000UF 20% 200V SCREW | 67% | View |
Submit your RFQ for ALS40A333MF063 and get a quote within 24 hours.
