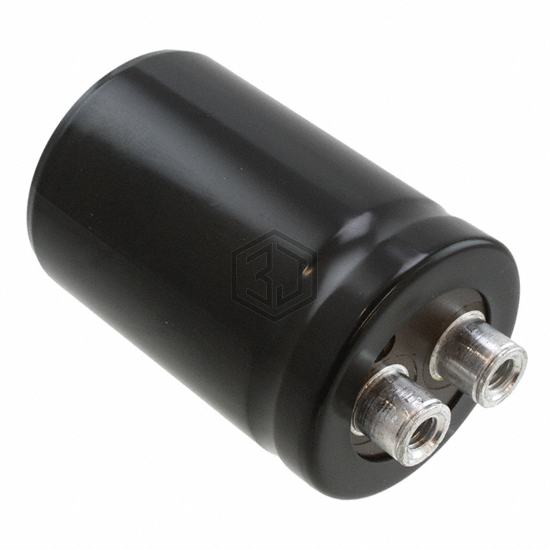

CAP ALUM 470UF 20% 200V SCREW
ALS30A471DA200 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 470UF 20% 200V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Screw Terminals.
In Stock: 48
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 286mOhm @ 100Hz |
| Lifetime @ Temp. | 11000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.6 A @ 100 Hz |
| Ripple Current @ High Frequency | 4.3 A @ 10 kHz |
| Impedance | 227 mOhms |
| Lead Spacing | 0.504" (12.80mm) |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 2.126" (54.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
