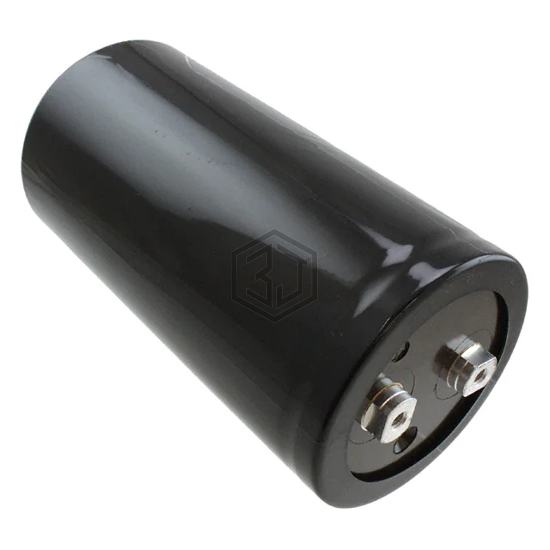

CAP ALUM 3300UF 20% 500V SCREW
ALS30A332NP500 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 3300UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,532
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 54mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15.3 A @ 100 Hz |
| Ripple Current @ High Frequency | 22.6 A @ 10 kHz |
| Impedance | 39 mOhms |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.032" Dia (77.00mm) |
| Height - Seated (Max) | 5.827" (148.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37D501CPN332MDD0Q | Chemi-Con | CAP ALUM 3.3MF 20% 500V SCREW CH | 98% | View |
| DCMC332M450CE2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 450V SCREW | 93% | View |
| MAL210227332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 450V SCREW | 86% | View |
| CGS332T450X5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 450V SCREW | 83% | View |
| LNY2W332MSEFBB | Nichicon | CAP ALUM 3300UF 20% 450V SCREW | 80% | View |
| MAL210262332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 200V SCREW | 62% | View |
Submit your RFQ for ALS30A332NP500 and get a quote within 24 hours.
