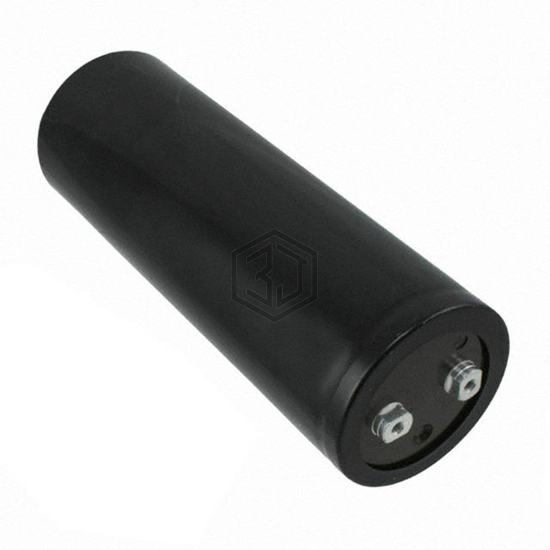

CAP ALUM 2200UF 20% 500V SCREW
ALS30A222NP500 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 2200UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 121
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.3 A @ 100 Hz |
| Ripple Current @ High Frequency | 21.8 A @ 10 kHz |
| Impedance | 44 mOhms |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.032" Dia (77.00mm) |
| Height - Seated (Max) | 5.827" (148.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for ALS30A222NP500 and get a quote within 24 hours.
