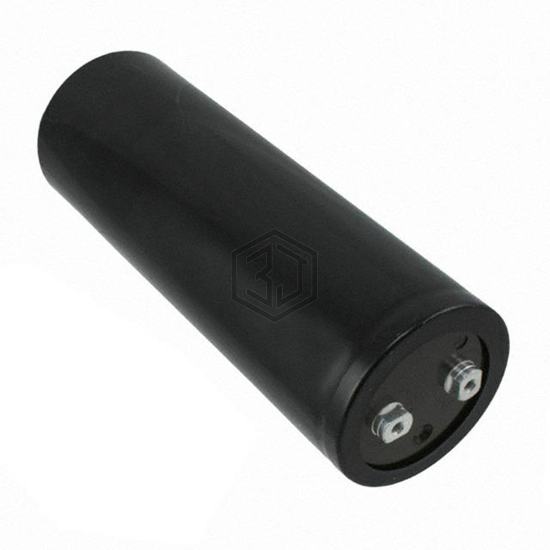

CAP ALUM 2200UF 20% 450V SCREW
ALS30A222NF450 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 2200UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 59mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12.2 A @ 100 Hz |
| Ripple Current @ High Frequency | 21.1 A @ 10 kHz |
| Impedance | 41 mOhms |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.032" Dia (77.00mm) |
| Height - Seated (Max) | 4.134" (105.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNC2W222MSEG | Nichicon | CAP ALUM 2200UF 20% 450V SCREW | 95% | View |
| B43455A0228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 400V SCREW | 92% | View |
| MAL210278222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 385V SCREW | 89% | View |
| LNC2V222MSEFBN | Nichicon | CAP ALUM 2200UF 20% 350V SCREW | 86% | View |
| MAL210426222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 400V SCREW | 86% | View |
| E37X421CPN222MD92U | United Chemi-Con | CAP ALUM 2200UF 20% 420V SCREW | 76% | View |
Submit your RFQ for ALS30A222NF450 and get a quote within 24 hours.
