ALUMINUM ELECTROLYTIC, SNAP-IN,

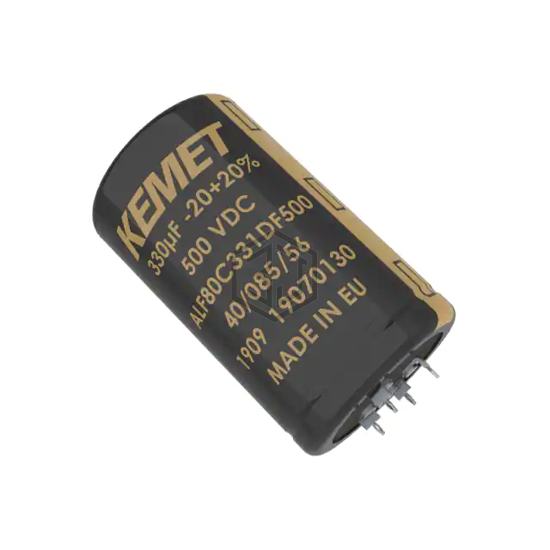

ALF80C561EH500 is a Aluminum Electrolytic Capacitors manufactured by KEMET. ALUMINUM ELECTROLYTIC, SNAP-IN,. Key specifications: mounting type Through Hole, Press-Fit, operating temperature -40°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can - Press-Fit - 4 Lead.
In Stock: 1,261
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 312mOhm @ 100Hz |
| Lifetime @ Temp. | 9000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.44 A @ 100 Hz |
| Ripple Current @ High Frequency | 8.08 A @ 10 kHz |
| Impedance | 209 mOhms |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.441" (62.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole, Press-Fit |
| Package / Case | Radial, Can - Press-Fit - 4 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALF80G621EH500 | KEMET | ALUMINUM ELECTROLYTIC, SNAP-IN, | 94% | View |
| ALF80C621EH500 | KEMET | ALUMINUM ELECTROLYTIC, SNAP-IN, | 94% | View |
| ALF80C561EF450 | KEMET | CAP ALUM 560UF 20% 450V SNAP | 90% | View |
| ALF40C681EL500 | KEMET | CAP ALUM 680UF 20% 500V SNAP | 86% | View |
| ALF40C561EG400 | KEMET | CAP ALUM 560UF 20% 400V SNAP | 86% | View |
| ALF40G561EG400 | KEMET | CAP ALUM 560UF 20% 400V SNAP | 86% | View |
