CAP ALUM 560UF 20% 500V SNAP

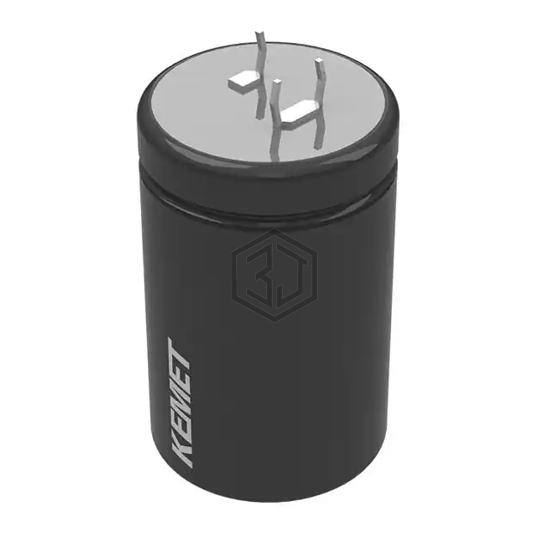

ALC70F561EF500 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 560UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In - 3 Lead.
In Stock: 3,332
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 370mOhm @ 100Hz |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.02 A @ 100 Hz |
| Ripple Current @ High Frequency | 6.04 A @ 10 kHz |
| Impedance | 264 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 3 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43511A9567M007 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 84% | View |
| MLP561M300EB1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 300V FLATPACK | 73% | View |
| B43540B2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 65% | View |
| 380LX561M180H042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 180V SNAP | 62% | View |
| B43508E2567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 60% | View |
| B43508A2567M82 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 56% | View |
Submit your RFQ for ALC70F561EF500 and get a quote within 24 hours.
