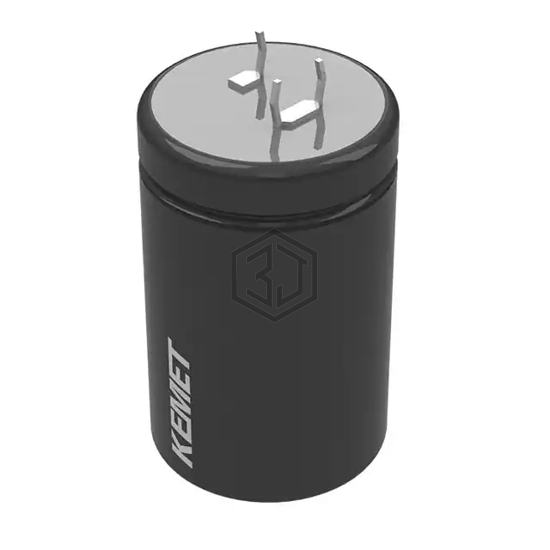

CAP ALUM 560UF 20% 200V SNAP
ALC70F561BD200 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In - 3 Lead.
In Stock: 1,427
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 396mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 100 Hz |
| Ripple Current @ High Frequency | 3.44 A @ 10 kHz |
| Impedance | 248 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 3 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43642A2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 94% | View |
| B43508A2567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 93% | View |
| B43501A5567M80 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 61% | View |
| B43501A3567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 385V SNAP | 61% | View |
| B43501B9567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 60% | View |
| B43522B9567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SLD LUG | 58% | View |
Submit your RFQ for ALC70F561BD200 and get a quote within 24 hours.
